Arch Kit (Greenhouse Hoops)

Greenhouse Arch Kit

This all-in-one Arch Kit provides the essential structural components for building or extending your greenhouse or tunnel frame. Each box includes everything needed to install the arch section - including arches, columns, embedment sleeves, greenhouse tape, and tek screws - making setup straightforward and secure.

Why Choose This Kit

• All-in-One Convenience: Includes arches, columns, sleeves, tape, and tek screws - ready to assemble straight from the box.
• Heavy-Duty Galvanised Steel: Built to Australian standards (AS1163 C250L0) with hot-dipped galvanising for exceptional durability and long-term resistance to rust and weather.
• Professional-Grade Materials: 32mm arch frames and 40mm sleeves with 1.5mm wall thickness provide robust structural integrity.
• Accurate Fit: Designed to match any of our frame kits for seamless integration.
• Expandable Design: Perfect for replacing individual sections or extending your tunnel length.
• DIY-Friendly: Straightforward setup with pre-drilled components and included fixings.

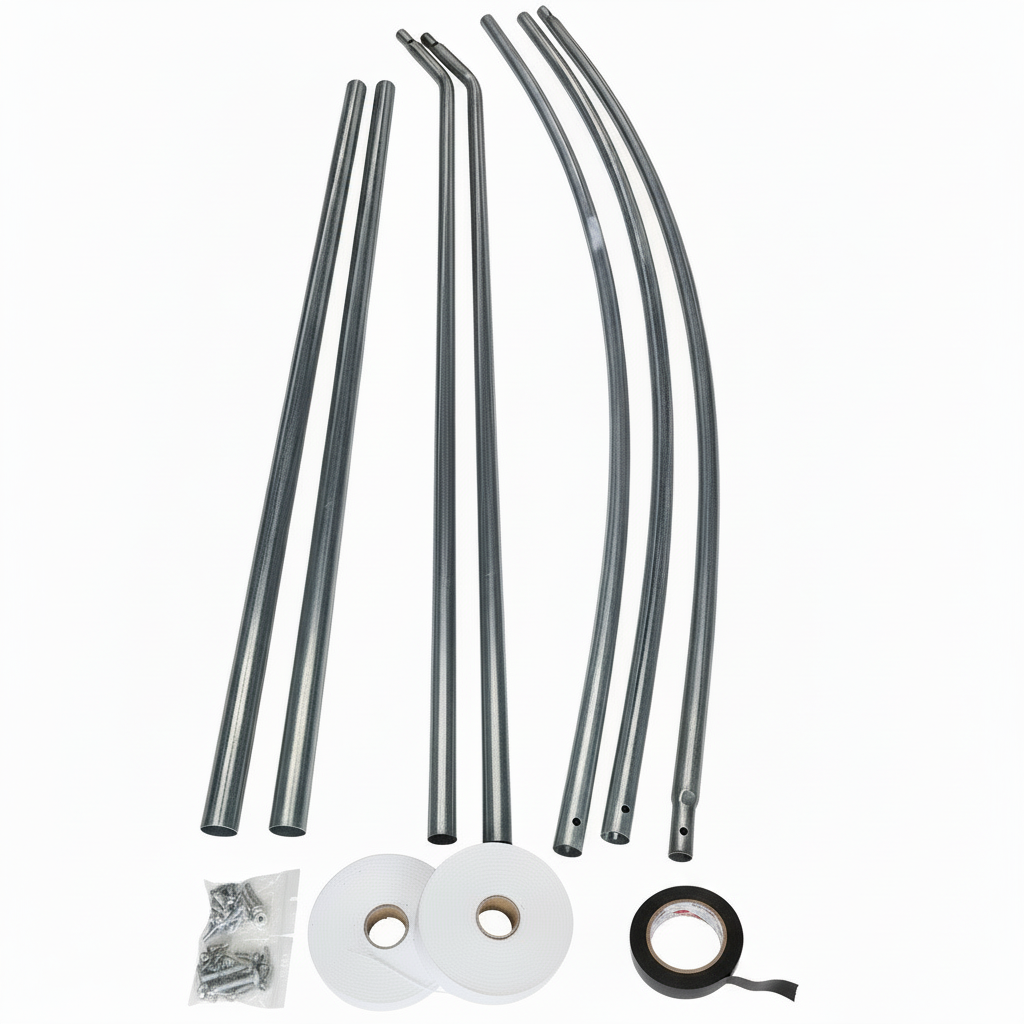

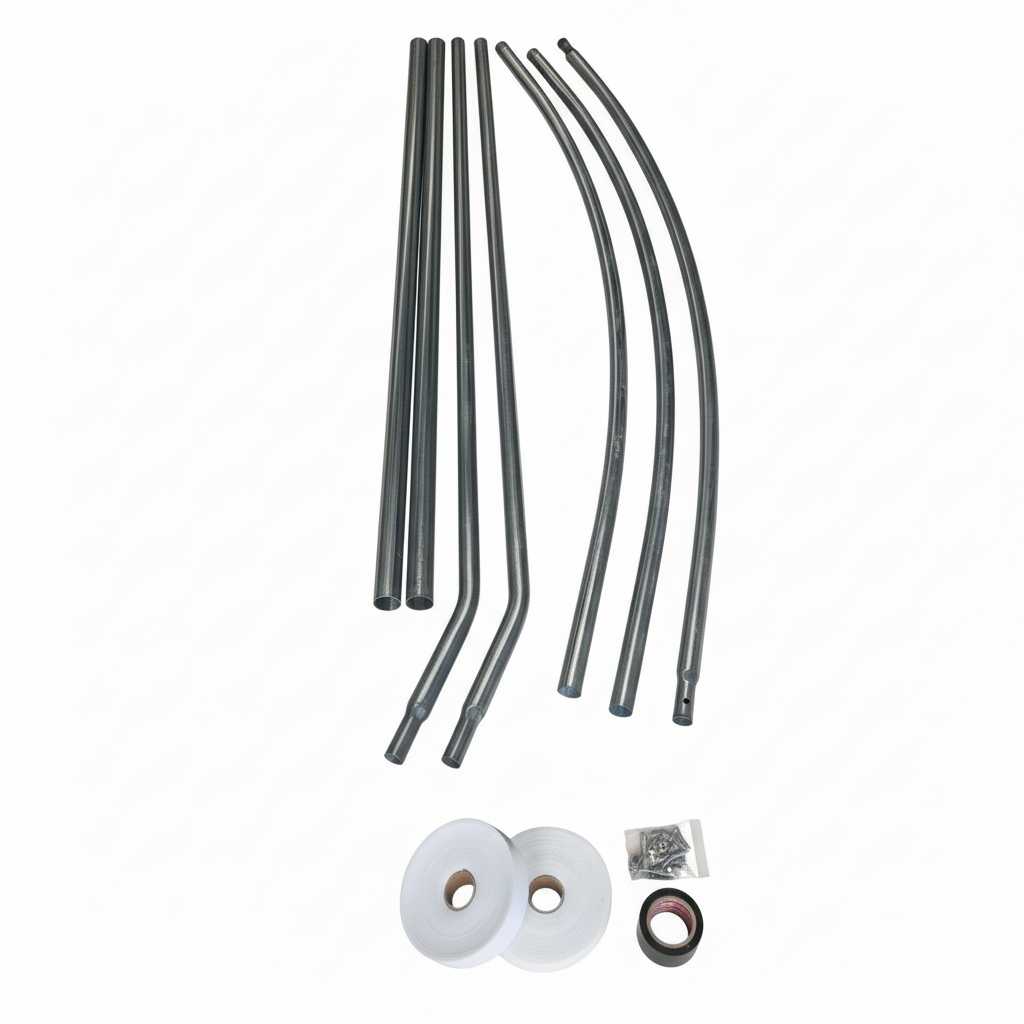

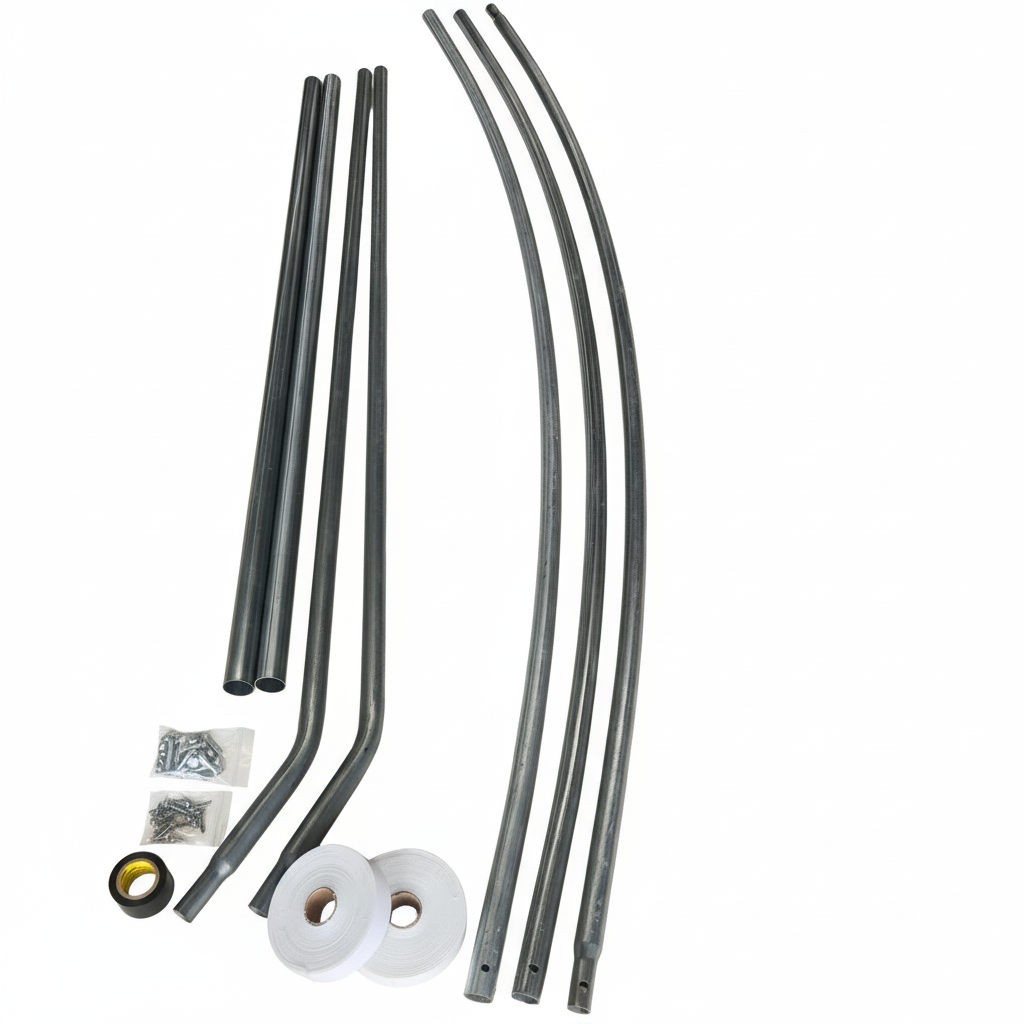

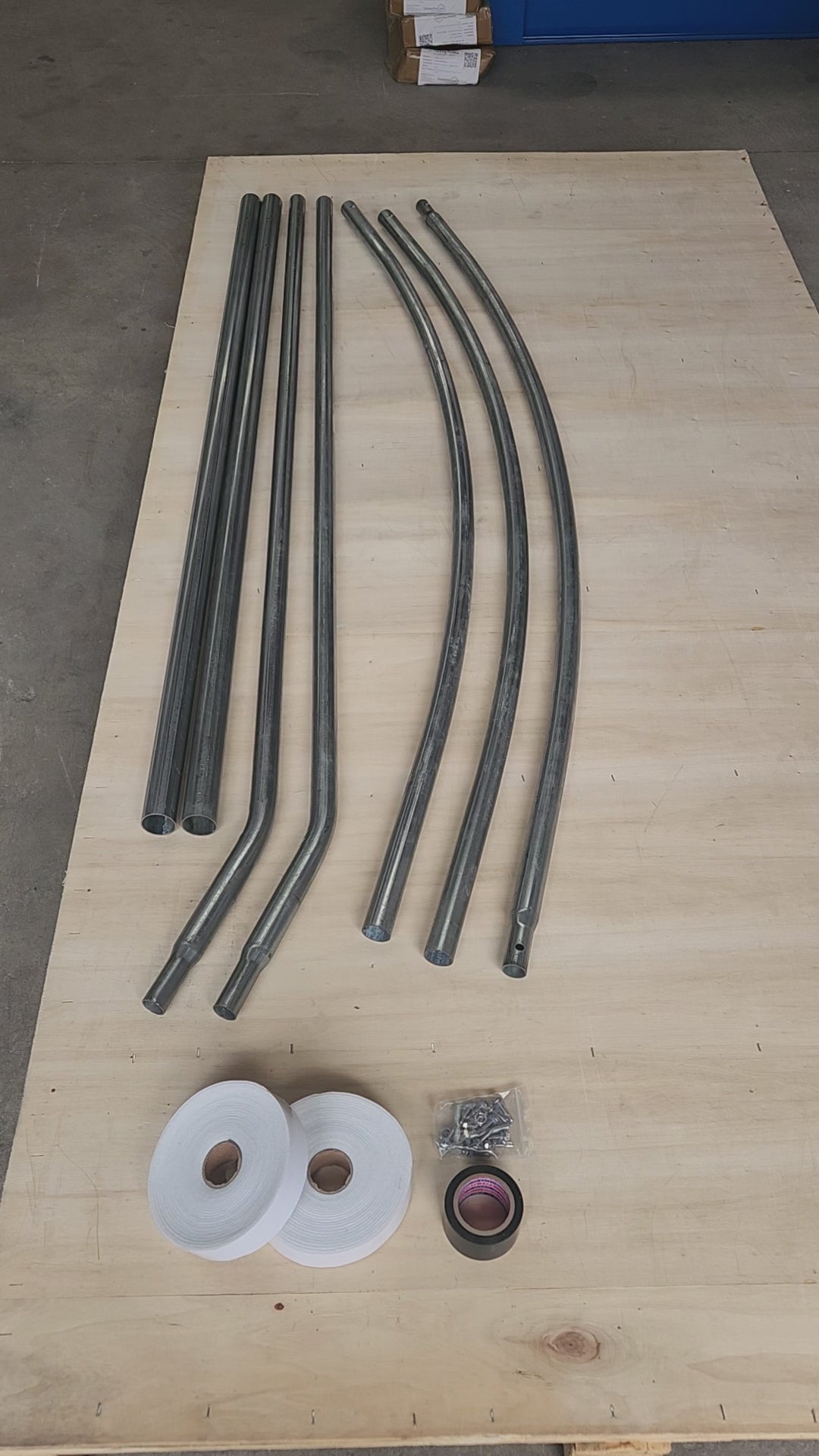

Kit Includes

• 1 x Arch Frame (in 4m, 4.9m, or 5.8m width) - 32mm galvanised steel pipe
• 2 x Columns
• 2 x Embedment Sleeves - 40mm galvanised steel pipe
• 2 x Rolls Greenhouse Tape
• 1 x Roll Tape
• 1 x Pack Tek Screws

Technical Specifications

• Arch Frame Material: 32mm Hot Dipped Galvanised steel, 1.5mm wall thickness, AS1163 C250L0
• Embedment Sleeve Material: 40mm Hot Dipped Galvanised steel, 1.5mm wall thickness, AS1163 C250L0
• Finish: Hot-dipped galvanising for superior corrosion resistance

Available Sizes

• 4.0m wide
• 4.9m wide
• 5.8m wide

Ideal For

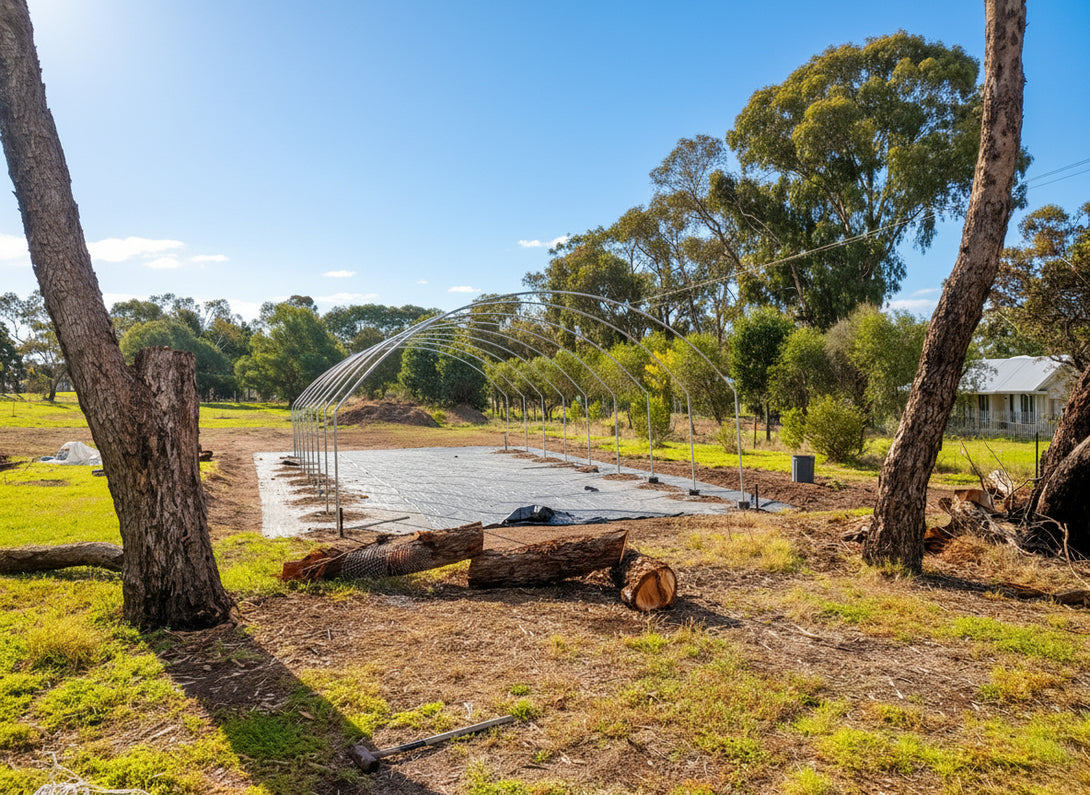

• Building or extending a greenhouse or tunnel frame
• Replacing damaged arches or columns
• Creating a custom tunnel layout

Please Note

• This product includes the arch structure only. Covers, end walls, and additional accessories are sold separately.
• Concrete must be provided by the customer. Typically 1–1.5 bags per hole are required for secure installation.
• All arches are compatible with our full range of tunnels.
